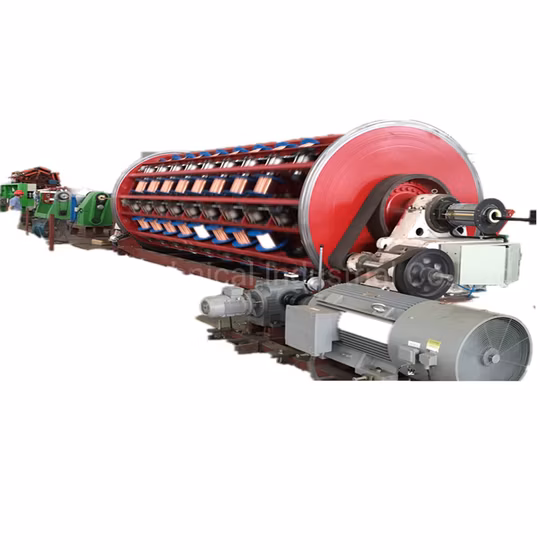

High Speed Rigid 1+6+12 Copper Wire Conductor Stranding Machine
Basic Info
Model NO. | Alpha |
After-sales Service | Available |
Driven Type | Electric |
Condition | New |
Certification | CCC, PSE, FDA, RoHS, ISO, CE |
Warranty | 12 Months |
Automatic Grade | Automatic |
Mould Life | 300,000-1,000,000 Shots |
Type | High-speed Stranding Machine |
Name | Jlk 630/6+12 Rigid Frame Strander |
Max. O.D. of Cable Stranded | Dia 35mm |
OEM Service | Positive |
Max. Line Speed of Capstan | 40m/Min |
Dia. of Capstan Wheel | Dia1600mm |
Pay-off Bobbin in The Frame | Dia630mm |
Central Pay-off Bobbin | Dia630mm |
6b Motor | 55kw (AC Inverter Motor) |
12b Motor | 75kw (AC Inverter Motor) |
Capstan Motor | 75kw (AC Inverter Motor) |
Transport Package | Standard Sea Worthy Package |
Specification | Customized |
Trademark | HLT |
Origin | Jiangsu Wuxi |
HS Code | 847790000 |
Production Capacity | 50 Units/Year |
Product Description
High Speed Rigid 1+6+12 Copper Wire Conductor Stranding MachineType1Application
The machine is used for stranding insulated cable core of control cable and steel wire armoring for cable.
- Sector Conductor Stranding and Compacting
- Round Conductor Stranding and Closing
- Pre-spiral Sector/Milliken Segment Compacting
Product Parameters
Type2
1.Application
- Soft/Semi-hard Aluminum Trapezoid Wire Stranding(T/S/Z)
- Carbon Fiber Reinforced Core Stranding
- Expanded Diameter Conductor Stranding
Technical Parameter
(mm) Reel Size | (rpm) Max. Rotation Speed | (min) Single Wire Diameter | |||||
6B | 12B | 18B | 24B | 30B | 36B | ||
710 | 170 | 150 | 132 | 117 | 103 | 91 | D3.0 ~D6.2 |
800 | 132 | 117 | 103 | 91 | 80 | 70 | D3.0 ~D6.2 |

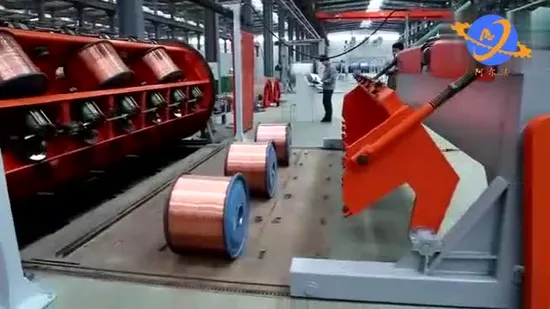

Machine pictures in our customer's plant and related finished products:
Company Profile
Alpha Technical Industrial is a collection of scientific research and development and production of wire and cable equipment and a variety of efficient energy-saving extrusion production line of key enterprises, so far, the main product including wire and cable Insulation and Sheathing production Line, TQD series Pneumatic Type belt Puller, LF series Portal Type Pay-off, LSP series Portal Type Take-up, Various Wire Accumulator, Capstan Haul-off, Pay-off & Take-up, Cooling Water Trough, and Optical Fiber Equipment, Communication Cable Equipment, Signal Cable Equipment.
Our company has a technical administration team who engages wire and cable equipment industrial more than twenty years, as well as experienced engineer and skilled workers, our honest business reputation and good sales achievement, win the trust from our domestic and overseas customers, the products are exported to United States, France, Spain, Portugal, New Zealand, Brazil, Mexico, Chile, South Africa, Zambia, Egypt, South Korea, Singapore, Indonesia, Thailand, Iran, etc.
Packaging & Shipping
FAQ
− Q: What can we offer our customers?
A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.
− Q: How long is the machine warranty?
A: Warranty period of one year (since the completion of mechanical debugging at the buyer's factory)
− Q: Why do I choose your company?
A: We have more than 10 years of professional experience in the production of cable machinery, providing high-quality, high-security products.
We have an experienced team of skilled workers and engineers.
We can support overseas training engineers.
We can customize the design, to accept the customer's sample design.
We can provide customers with after-sales service.
Enable to give you a quotation for the cable stander, there is some necessary information that we need to know:1. Cable size structure, Cable diameter?2. How many kgs/meters to strand per hour?3. Reel/Flange Diameter, we need to quote correct take-up and pay off machine4. Bobbin drrawing Welcome to inquiry us!
