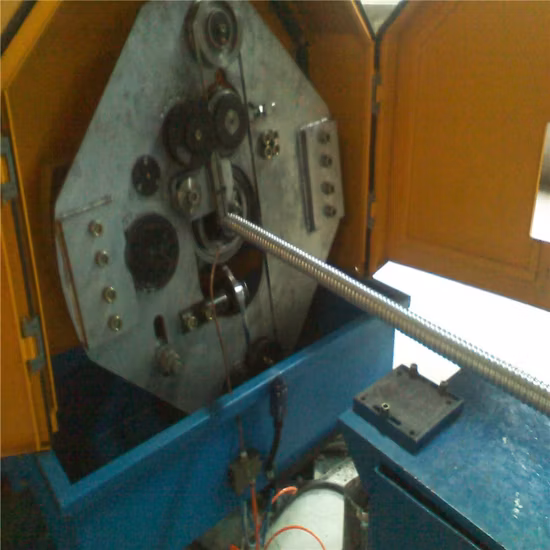

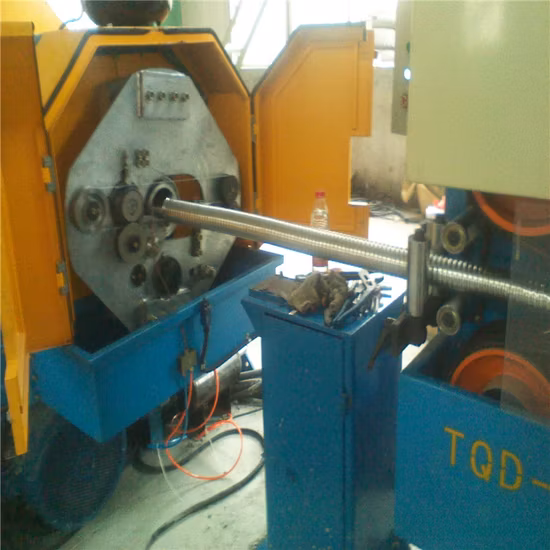

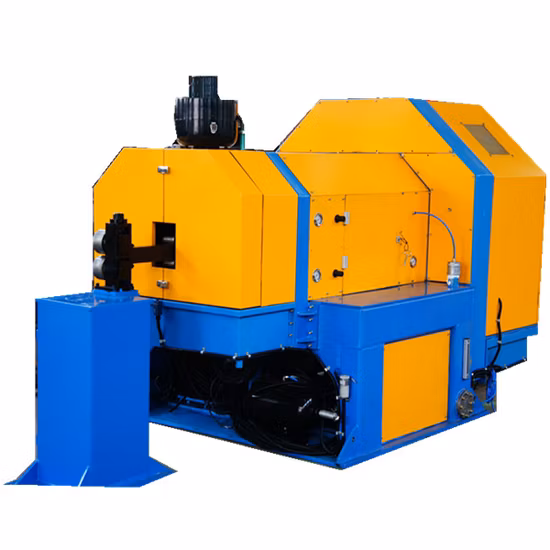

Continuous Interlock Strip Cable Armoring Machine

Basic Info

After-sales Service	Available
Warranty	1 Year
Condition	New
Automatic Grade	Automatic
Reel Diameter	Krh-50/75/125
Width of Strip(mm)	9.5-25.4mm
Thickness of Strip (mm)	0.5-0.8mm
Dia. of Cable(mm)	50-120mm
Max Rotation Speed	500-700 Rpm
Machine Color	Can Be Customized
Armoured Cable Shape	Round or Flat
Strip Material	Aluminium Strip or Steel Strip
Product Name	High Speed Steel Strip Interlock Cable Armoring
Transport Package	Standard Seaworthy Package
Specification	Dia of cable: 50, 70, 120mm
Trademark	Can be customized
Origin	Jiangsu, China
Production Capacity	1000 Sets Per Year

Product Description

High Speed Steel Strip Interlock Cable Armoring Machine



Equipment Application:

This machine is designed for aluminum alloy core, aluminum alloy sheathed cable coating purpose, For armouring productiuon of round BX and MC cable, and submersible pump cable.



Equipment feature:
1. The whole body of the machine frame is welded by high quality steel plate,good stablity.2.Conveying speed is via main shaft through synchronous belt transmission to stepless variator,ensure the accuracy of main shaft speed and strip conveying speed.3.Adopt individual structure, electrical control is synchronization with production line.



Main Technical Parameters

Reel diameter	Width of strip(mm)	Thickness of strip (mm)	Dia. of cable(mm)	Max rotation speed(rpm)
KRH-50	9.5-15	0.5-0.6	50	700
KRH-75	9.5-19	0.5-0.7	70	600
KRH-125	9.5-25.4	0.5-0.8	120	500

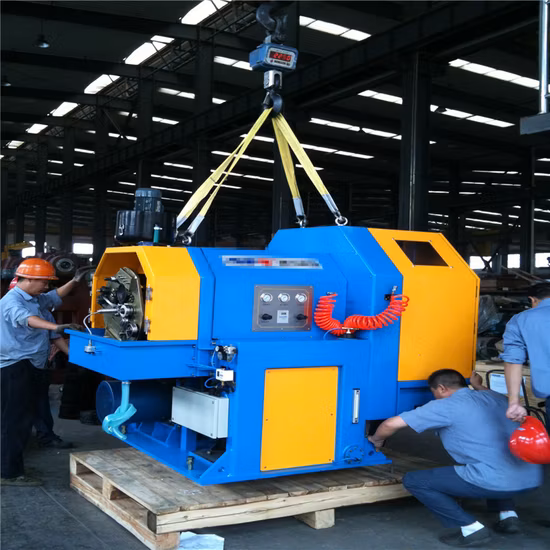

Package &Delivery



Our Factory



Customer Visiting



Our Team



FAQ

− Q: What can we offer our customers? A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.− Q: How long is the machine warranty? A: Warranty period of one year (since the completion of mechanical debugging at the buyer's factory)− Q: Why do I choose your company? A: We have more than 10 years of professional experience in the production of cable machinery, providing high-quality, high-security products. We have an experienced team of skilled workers and engineers. We can support overseas training engineers. We can customize the design, to accept the customer's sample design. We can provide customers with after-sales service.

Enable us make accurate and detailed quotation for you, would you pls send the following information to us

1.What is cable outside diameter before armoring? 2.Is the armoured cable round or flat shape?3.What is the strip material? Aluminium strip or steel strip
