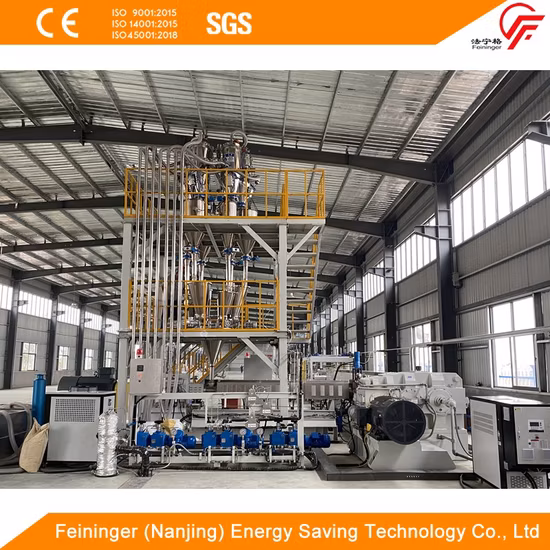

XPS Extrusion Machine Twin Screw Extruder CO2 Foaming

Basic Info

Model NO.	FS85T/250C
Certification	CE, ISO
Condition	New
Customized	Customized
Application	Making Thermal Insulation Board
Voltage	350V, 380V
Product Thickness	20mm-120mm
Product Width	600mm/900mm/1200mm
Capacity	600-800kg/Hour
Final Product	XPS Foam Board
OEM	Acceptable
Manufacturer	Yes
Foaming Agent	CO2, Hcfc, Hfc, Butane, LPG
Transport Package	Wooden Case
Specification	22tons
Trademark	Feininger
Origin	China
HS Code	8477402000
Production Capacity	9999/Year

Product Description

Model	Output(Kg/hr)	Product Width(MM)	Gas	Size(M)	Weight(Ton)
FS120/150C	280-450	600, 900, 1200 (Adjustable)	CO2, Ethanol, HFCS, HFOS, LPG, Butane...	40x10x4	18
FS150/200C	350-550			45x12x4	22
FS75T/200C	400-600			60x10x6	22
FS85T/250C	500-800			80x18x6	40
FS95T/300C	800-1000			90x15x6	50
FS110T/400C	1400-2000			100x20x6	60

Why Choose Us?

1. The XPS Insulation Board Production Lines from Feininger (Our Lines) are much cheaper than the lines with same capacities from Europe, only 10% to 20%. The products from both lines are similar.2. Our Lines can use 100% recycle materials, such as recycled EPS and GPPS as well as virgin GPPS as raw materials. It can reduce the cost of XPS board very much. The lines from Europe only can use virgin materials. The prices of recycled materials are much cheaper than virgin materials. Our Lines are the environment friendly machinery.

3. Our Lines also can use CO2 and alcohol as the foaming agent with top technology, besides HCFC, such as: R22, R142b, or HFC, such as: R152a. Our production line can produce XPS board free of CFC and HCFC.

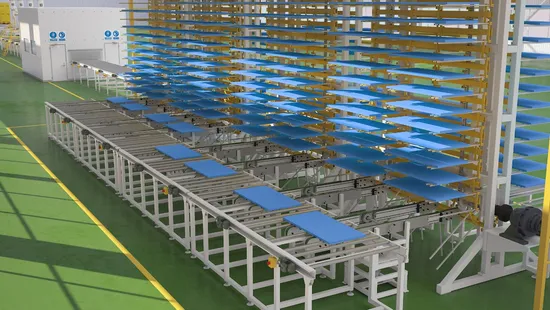

4. We can adopt twin screws in first extruder, as well as single screw. By different combinations with different diameters and sizes in the first extruder and second extruder, we can get different capacities from 200kg per hour to 800kg per hour. It can fulfill most of clients' requirements.5. All equipments, including Longitudinal Shiplap Cutting Device, Cross Shiplap Cutting Device, Surface Embossing Device, Surface Grooving Device, Stacking System and Packing System can be online working. Other suppliers have not this technology.
6. We have more than 10 years experience to produce XPS Production Line.
7. Our Lines have lowest energy consumption in the world.
8. The XPS Lines from Feininger have earned CE Certificate.

Successful Case

Final Product

Final Product Specification

Certification

Packing and Shipping

Company Profile
Feininger has been engaged in foam extrusion technology and its industrialization for years. We are located in China with the global view. Nowadays, Feininger becomes the leading supplier for both XPS board extrusion line and XPS insulation board all over the world. And we have successfully been developed PET foam board extrusion line, PS baseboard line and PS photo frame making machine. Success in plastic foam extrusion requires experiences and innovation. Feininger R&D center did it. This enables Feininger become your reliable business strategic partner with confidence. People have to mention Feininger whenever they talk about new foam extrusion technology.From consulting to commissioning, we offer completely turn-key project for foam extrusion plant. Feininger had been passed ISO:9001 and CE certificates which guaranteed our products to have higher quality requirements and more caring designs. Our mission is to have more customers who come from all over the world could use our products and service by our unceasing efforts.

FAQ1. who are we?We are based in Jiangsu, China, start from 2003, sell to Eastern Asia(60.00%), Mid East(20.00%), South Asia(10.00%), Africa(10.00%). There are total about 201-300 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3. what can you buy from us?XPS Production Line, XPS Foam Board, PET Extrusion Line, PS Skirting Board Production line, PS Photo Frame Extrusion Production Line4. why should you buy from us not from other suppliers?In the year of 2002, Feininger firstly designed and manufactured high quality XPS Foam Board Production Line in China. Since then we have contributed us to research of XPS technology improving continuously product quality.5. what services can we provide?Accepted Delivery Terms: FOB, CFR, CIF, EXW;Accepted Payment Currency: USD, EUR, CNY;Accepted Payment Type: T/T, L/C;Language Spoken: English, Chinese, Russian
