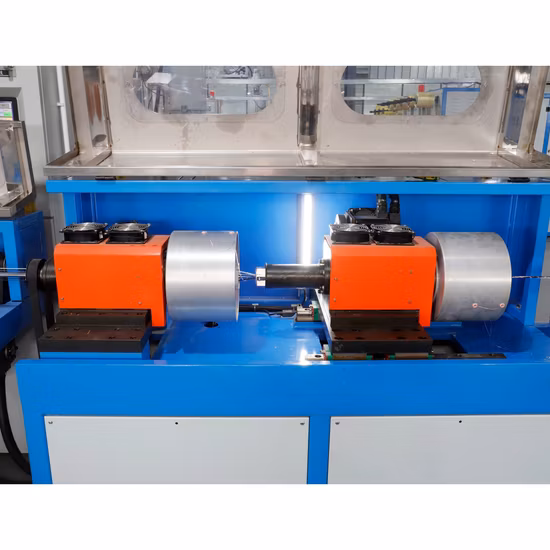

Sz Stranding Cabling Machine for Optical Cable

Basic Info

Model NO.	WRK-SZ-6P(18P)
Plastic Processed	PVC
Product Type	Granulating Extruder
Feeding Mode	One Feed
Assembly Structure	Separate Type Extruder
Screw	Single-Screw
Engagement System	Full Intermeshing
Screw Channel Structure	Deep Screw
Exhaust	Exhaust
Automation	Automatic
Computerized	Computerized
Certification	ISO
Condition	New
Usage	Fibre Loose Tubes Twist
Loose Tube Diameter	1.8mm/2.0mm/2.2mm/2.4mm
Machine Size	GF-800/12
Payment Term	T/T, L/C
Structure Speed	Max.70m/Min
Service	Technical Support, Training
Motor	Siemens
System	PLC+Ipc Control
Power	Three Phase Five Line 380V 50Hz
Transport Package	Plastic Film+Wooden Package
Origin	China
HS Code	8477900000
Production Capacity	4set Per Month

Packaging & Delivery

Package size per unit product 320.00cm * 160.00cm * 200.00cm Gross weight per unit product 500.000kg

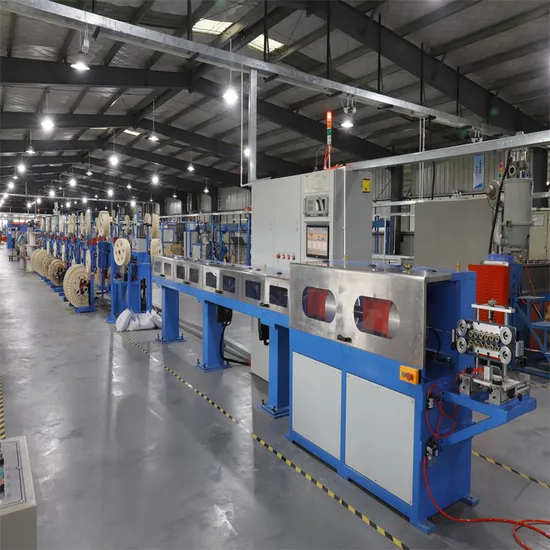

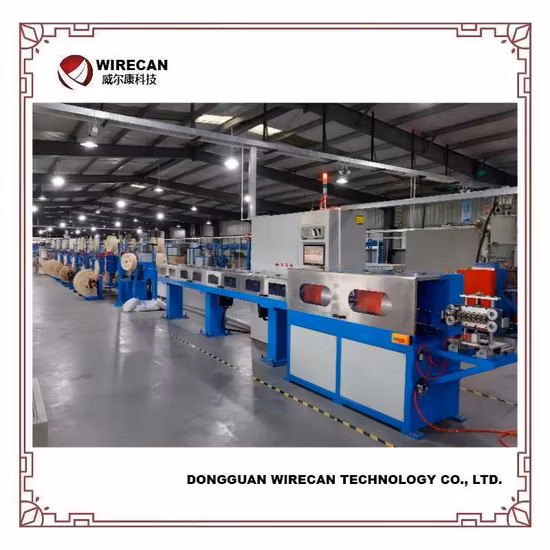

Product Description

1,Equipment application : SZ stranding machine mainly used for SZ stranding and laying-up of ¢ 2.0-¢4.5mm loose tube oil-filled optic-fiber. 2,Technical parameters of SZ stranding equipment:

reinforcement core pay-off reel specification	PN800-PN1250MM
tension wheel diameter	ø800mm(double wheels)
pay-off reels no of optical-fiber bundle tube	12reels(according to clients' requirement)
Max laying-up outer diameter	ø30mm
production speed	max.80m/min
laying-up pitch(single screw )	(80-1500mm)±5-10mm
SZ stranding angle	±(4-24)π
max revolution speed of cotton wrapping head	3000rpm
max revolution speed of SZ stranding heads	850rpm
cotton wrapping pitch	20mm-50mm
reinforcement core pay-off tension	50N-300N
take-up tension	50-150N
take-up reel specification	PN1000-PN1800
excess loss of laying-up	0.02db/km

3. Machine main electric brand
Motor: Siemens (china) MotorTransducer: American Emerson transducerTemperature controller: Omron Brand PID Smart typeMan-Machine interface: 10.2 inch colorPLC and Control Module: SiemensScrew and Barrel: Produced by jinhu Company.Bearing: Japan NSK or other same quality brandLow voltage electrical parts: Adopts SIEMENS, OMRON, brands,etc.
