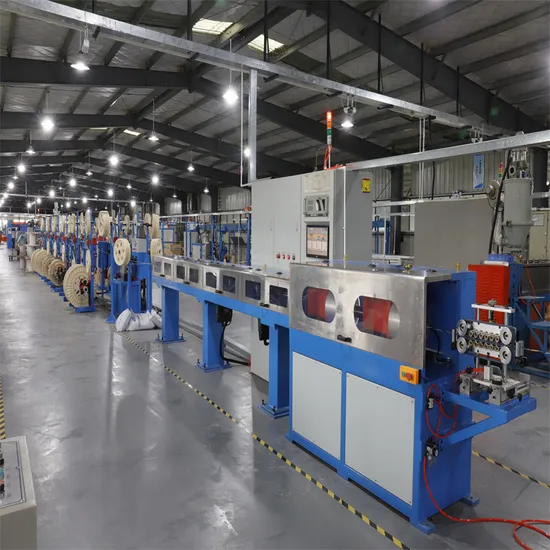

Sz Cabling Stranding Laying-up Machine

Sz Cabling Stranding Laying-up Machine

1,Equipment application : SZ stranding machine mainly used for SZ stranding and laying-up of ¢ 2.0-¢4.5mm loose tube oil
Basic Info
Model NO. WRK-SZ-6P(18P)
After-sales Service One Year Free, Lifetime Maintenance
Warranty One Year Free,
Type Cable Extruder, Optical Cable Equipment
Plastic Processed PVC
Product Type Granulating Extruder
Feeding Mode One Feed
Assembly Structure Separate Type Extruder
Screw Single-Screw
Engagement System Full Intermeshing
Screw Channel Structure Deep Screw
Exhaust Exhaust
Automation Automatic
Computerized Computerized
Certification ISO
Condition New
Usage Fibre Loose Tubes Twist
Loose Tube Diameter 1.8mm/2.0mm/2.2mm/2.4mm
Machine Size GF-800/12
Payment Term T/T, L/C
Structure Speed Max.70m/Min
Service Technical Support, Training
Motor Siemens
System PLC+Ipc Control
Power Three Phase Five Line 380V 50Hz
Transport Package Plastic Film+Wooden Package
Origin China
HS Code 8477900000
Production Capacity 4set Per Month
Product Description
1,Equipment application : SZ stranding machine mainly used for SZ stranding and laying-up of ¢ 2.0-¢4.5mm loose tube oil-filled optic-fiber. 2,Technical parameters of SZ stranding equipment:
reinforcement core pay-off reel specificationPN800-PN1250MM
tension wheel diameterø800mm(double wheels)
pay-off reels no of optical-fiber bundle tube12reels(according to clients' requirement)
Max laying-up outer diameterø30mm
production speedmax.80m/min
laying-up pitch(single screw ) (80-1500mm)±5-10mm
SZ stranding angle ±(4-24)π
max revolution speed of cotton wrapping head 3000rpm
max revolution speed of SZ stranding heads 850rpm
cotton wrapping pitch 20mm-50mm
reinforcement core pay-off tension 50N-300N
take-up tension 50-150N
take-up reel specification PN1000-PN1800
excess loss of laying-up 0.02db/km

3. Machine main electric brand
Motor: Siemens (china) MotorTransducer: American Emerson transducerTemperature controller: Omron Brand PID Smart typeMan-Machine interface: 10.2 inch colorPLC and Control Module: SiemensScrew and Barrel: Produced by jinhu Company.Bearing: Japan NSK or other same quality brandLow voltage electrical parts: Adopts SIEMENS, OMRON, brands,etc.

Production Process:

Our main products:

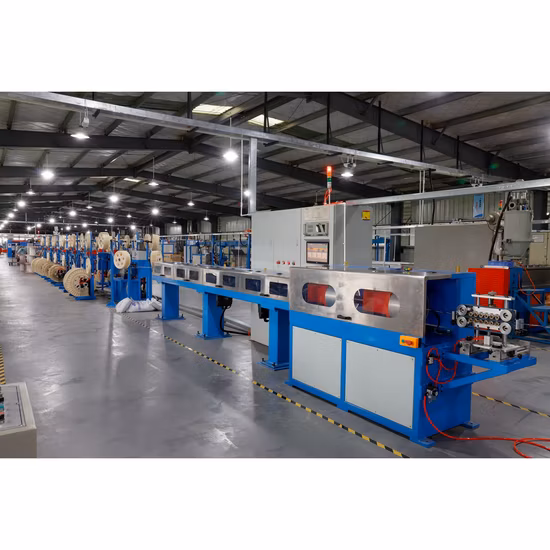

Sz Cabling Stranding Laying-up Machine

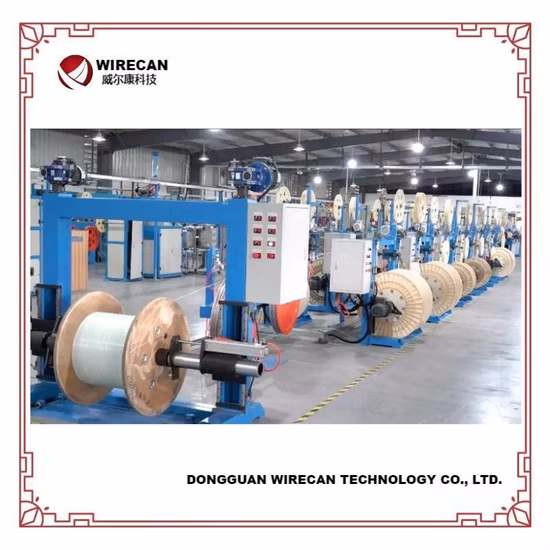

Sz Cabling Stranding Laying-up Machine

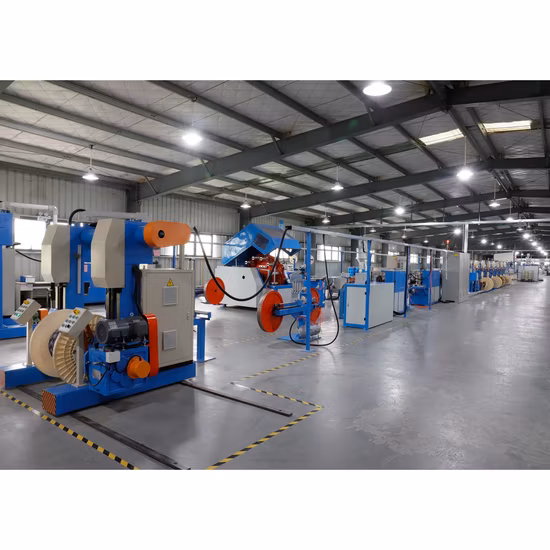

Sz Cabling Stranding Laying-up Machine

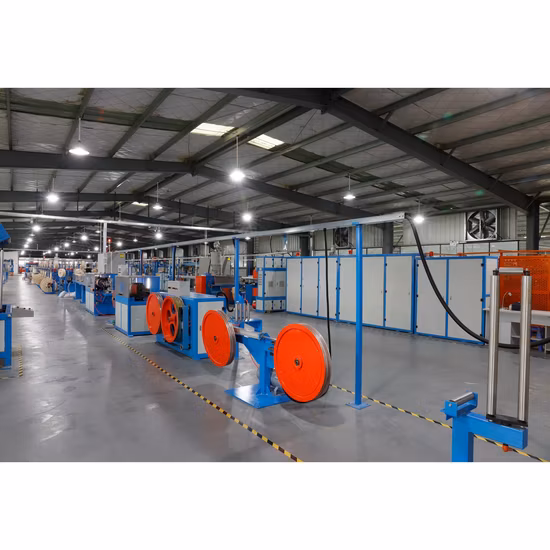

Sz Cabling Stranding Laying-up Machine



What we can do for you ?

Sz Cabling Stranding Laying-up Machine


Delivery and packing
