Automatic Double Wire Bunching Stranding Twisting Machine; Several Cable Twister Machine; Five Head Wire Twist Machine

Basic Info

Model NO.	X-505
Driven Type	Electric
Condition	New
Certification	CE
Warranty	12 Months
Automatic Grade	Automatic
Mould Life	>1,000,000 Shots
Type	Double Stranding Machine
Transport Package	Carton
HS Code	8749819000
Production Capacity	800 PCS /Month

Product Description

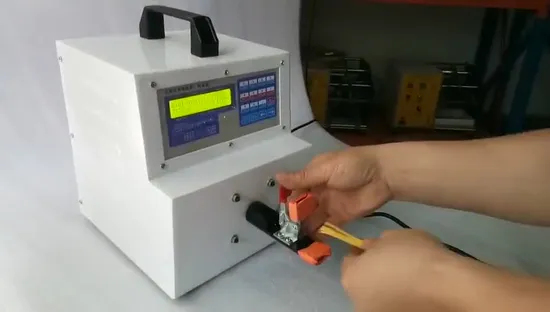

Automatic Double wire bunching stranding twisting machine;Several cable twister machine; Five head wire twist machine

Detailed Photos

Apply forProduct DescriptionFeatures: 1.Specializing in stranding electronic wire,uniform output, stable quality. 2.It can be stranded multiple wires at the same time, speed, count,forward and reverse, can be adjustable, it is also multistage stranding. 3.Compact structure, simple operation and efficient.

Model	505T Five head twist machine multi-function high-speed cable stranding machine Electronic wire twisting machine
Usage	Multifunctional, Wires stranding
voltage	AC110V/220V 50HZ/60HZ
Spindle speed (rev / min)	300-7500 continuously adjustable
Number of twisted coils	0.5 ~ 9999.9
Max. Number of stored work pieces	99 types
Maximum wire diameter	1.2mm (diameter 20 skeleton)
Dimension	300 * 220 * 310mm
Strand length	50-800mm
Power	120W

Relate MachinesOur Advantages

Company Profile

Kunhan XUXIN Industiral Equipment CO.,Ltd founded in 2009, which is top-supplier of wire processing machine.

We mainly focus on research and development, production and customization, learning from Japan and Taiwan techniques and experience.Our end customers always specialized in aspect of electronic, home appliance, motor vehicle, lighting etc. Our clients and markets spread almost all over china and Vietnam, Indonesia, India, Brazil, Colombia, USA, Mexico, Italy.Our main products include Auto wire cut strip crimp and tinning machine, auto cut strip and crimping machine.Auto cutting splitting and stripping machine for ribbon cable, Heat shrink tube cutter, Cable winding and tie machine, Terminal applicators.Easy-operation, overseas after-sale service available, high-efficiency is our outstanding advantage over other competitors, which helps our users save more labor cost and enhance the production rate. Quality is our culture. Welcome to join us for win-win situation. We will support you all with our technical experience and service wholeheartedly.
