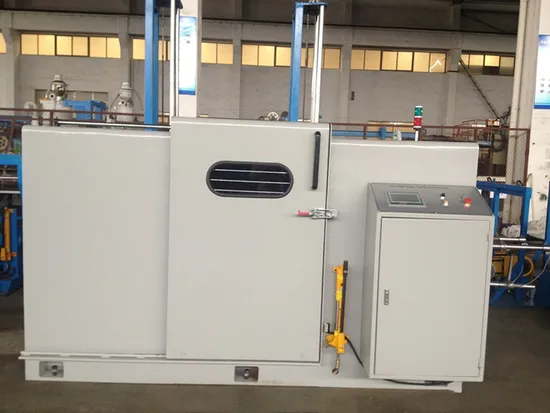

650p Double Twists Stranding Machine Made in China

Basic Info

Model NO.	HL-650P
Mould Life	1 Year
Type	Double Stranding Machine
Machine Model	650p Double Twists Bunching Machine
Twisting Section	0.18 - 6.0 Square mm
Twisting Pitches	22.5 -152 mm
Single Wire Range	0.18 - 1.0 mm
Twisting Direction	S or Z
Max. Speed	2000 Rpm
Volume	5 Cubic Meter
Inverter	Simens/Yaskawa/Inovance/Sinee/Delta
Power	380 - 440V 50/60Hz
Quality Guarantee	12 Months
Delivery Time	Two Weeks
Transport Package	Wooden Pallet
Specification	3500 KGS
Trademark	HIGH LAND
Origin	China
HS Code	8479400000
Production Capacity	10 Sets/Month

Product Description

Quality Double Twist Stranding Machine Made in China
1. Application: This double twist bunching machine is mainly used for stranding fine copper wires, tinned copper wires, enameled wire and other alloy wires for wire and cable production.2. Advantages 1> High speed, big capacity, 2> PLC + Touch screen control, 3> Inverter speed adjusting, Saving power, 4> Magnetic powder clutch tension control, easy operating, 5> Stable running, low noise.
3. Main Machine List

650P Double Twist Bunching Machine List
S/N	ITEM	Quantity
1	Passive pay-off stands	/
2	HL-650P double twist bunching machine	1 set
3	Controlling cabinet	1 set
4	Machine's documents	1 set
5	Spare parts	1 set
6	Bunching dies	/
7	630 Take-up bobbins	/
8	Cold welding machine and welding tool	1 set

4. Main Technical Parameter

650P High Speed Double Twist Bunching Machine
S/N	ITEM	SPECIFICATION
1	Machine model	HL-650P double twist bunching machine
2	Machine function	Bunching bare copper,tinned,enameled wires
3	Twisting section ares	Ø 0.18 - 6.0 mm²
4	Single wire size range	Ø 0.1 - 0.32 mm
5	Twisting pitch	11.61 - 66.03 mm
6	Twisting direction	S or Z direction
7	Max. Speed	2000 rpm
8	Motor power	7.5 kw A.C motor
9	Speed control	SIEMENS/YASKAWA/INOVANCE/SINEE inverter
10	Bobbin up-down device	By manual, hydraulic
11	Braking	Magnetic breaking
12	Max. Bobbin sizes	Ø 630 mm
13	Take-up tension	Magnetic powder clutch
14	Power supply	380 V 50 Hz
15	Machine size	3310×1800×1500 mm
16	Machine weight	3500 kg

5. Main Machine Photos6. After sales services We have professional and skilled after sales team which can provide clients with problem free services. 7. Company Profile We are a professional supplier of wire and cable equipment, so far we already exported our equipment to Australia, Pakistan, Morocco, India, Turkey, Iran, UK, Russia and so on. We are willing to create a win-win future with friends of wordwide!
